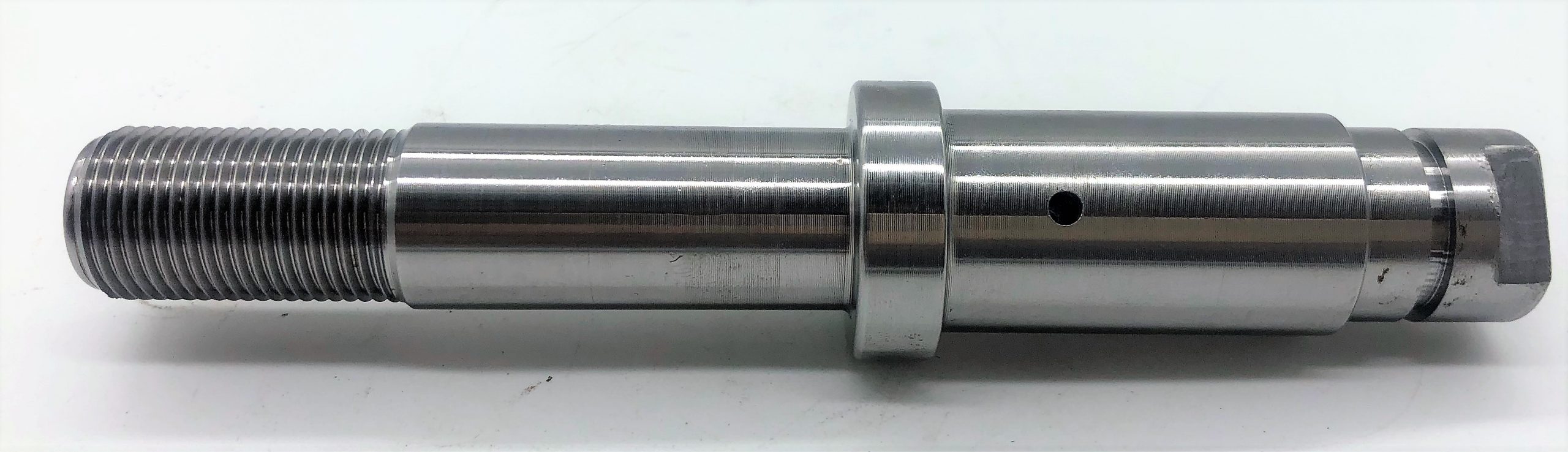

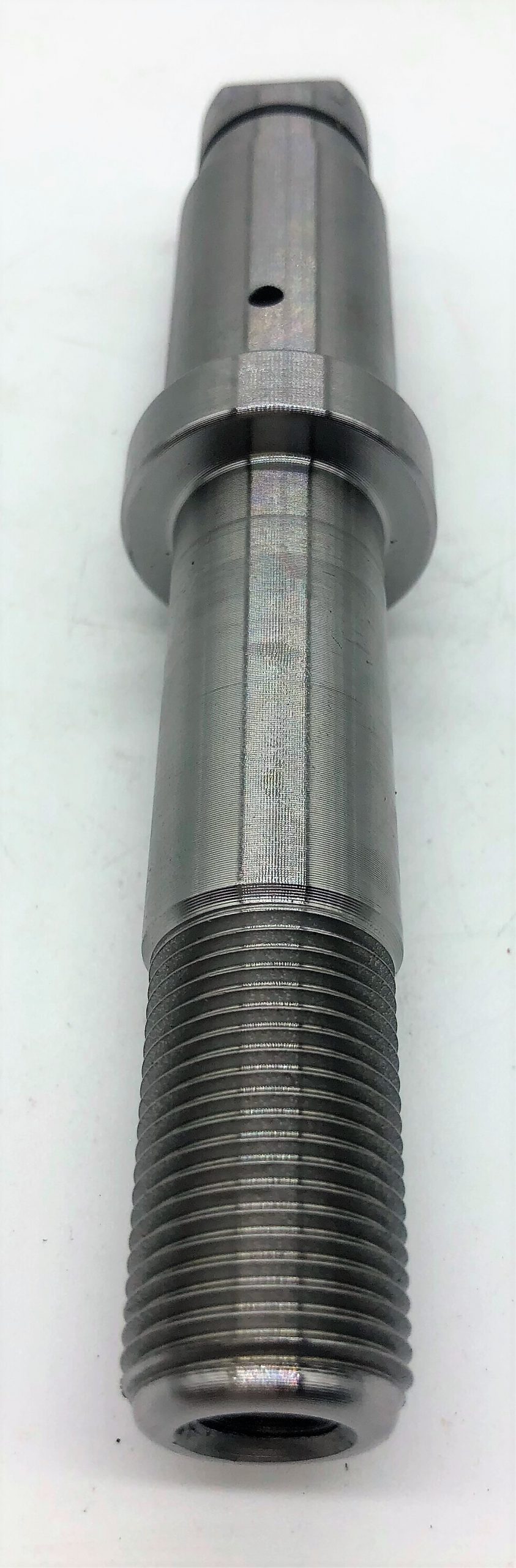

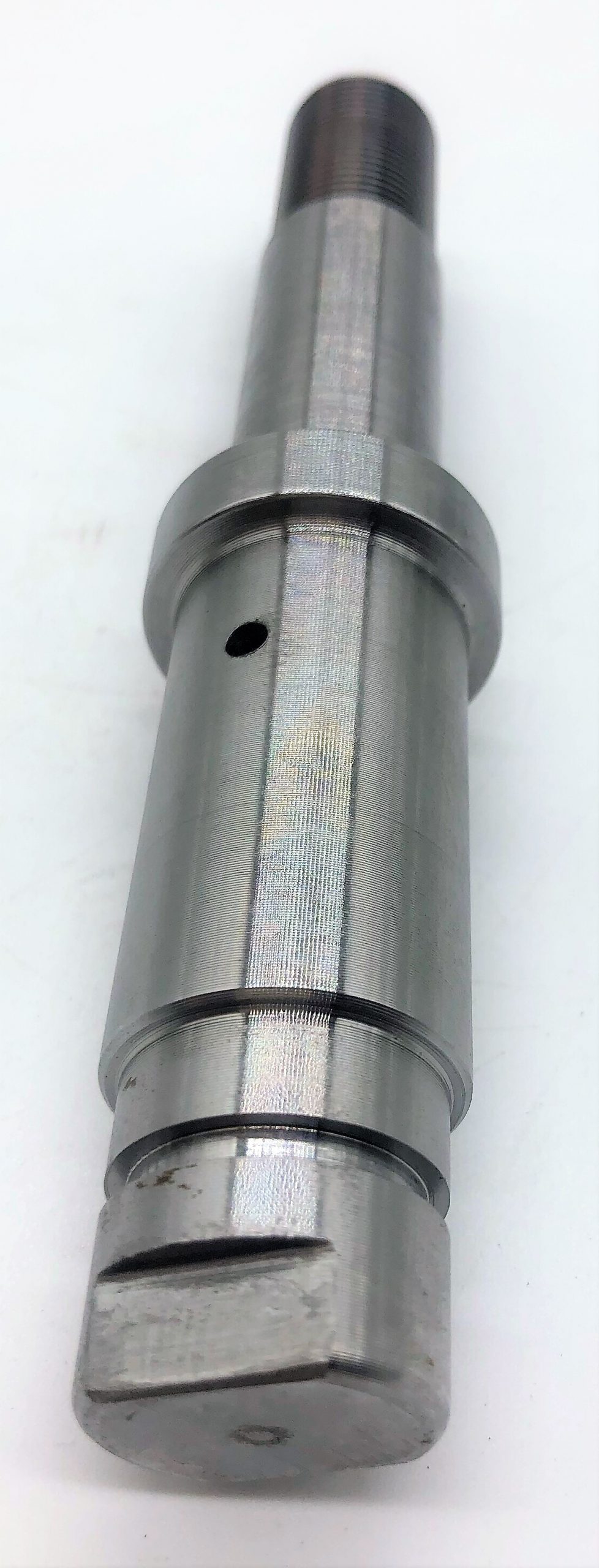

Brake Shoe Anchor Pin Greaseable (Version)

Australian Truck & Trailer Parts Designed Brake Shoe Anchor Pin Greaseable (Version) to suit Std. Forge and Kershaw 12-114″ Oia. Brakes

Use with 03.3172.0 Jam Nut, 70.103.12 , Spring Washer 03.3161.0,? Link and 03.3153.0 “C” Washer

Replaces: Spicer M10HP103 and Std. Forge 203105-003 Same as 03.3241.0 except Drilled for Lubrication

$48.95

14 in stock (can be backordered)

Description

Std. Forge and Kershaw 12-114″ Oia. Brakes

Use with 03.3172.0 Jam Nut, 70.103.12 , Spring Washer 03.3161.0,? Link and 03.3153.0 “C” Washer

Replaces: Spicer M10HP103 and Std. Forge 203105-003 Same as 03.3241.0 except Drilled for Lubrication

Large O.D. 1″ =25.4mm

Small O.D. 13/16″= 20.6mm

THD 3/4″-16

L.G 6-9/32″ =159.5mm
